稻草和紫云英联合还田下施氮水平对水稻产量及土壤氮素形态的影响

朱强, 张静, 郭再华, 耿明建

朱强, 张静, 郭再华, 耿明建. 稻草和紫云英联合还田下施氮水平对水稻产量及土壤氮素形态的影响[J]. 植物营养与肥料学报, 2020, 26(12): 2177-2183. DOI: 10.11674/zwyf.20384
引用本文: 朱强, 张静, 郭再华, 耿明建. 稻草和紫云英联合还田下施氮水平对水稻产量及土壤氮素形态的影响[J]. 植物营养与肥料学报, 2020, 26(12): 2177-2183. DOI: 10.11674/zwyf.20384
ZHU Qiang, ZHANG Jing, GUO Zai-hua, GENG Ming-jian. Effects of different nitrogen inputs on rice yield and soil nitrogen forms under incorporation of rice straw and Chinese milk vetch[J]. Journal of Plant Nutrition and Fertilizers, 2020, 26(12): 2177-2183. DOI: 10.11674/zwyf.20384
Citation: ZHU Qiang, ZHANG Jing, GUO Zai-hua, GENG Ming-jian. Effects of different nitrogen inputs on rice yield and soil nitrogen forms under incorporation of rice straw and Chinese milk vetch[J]. Journal of Plant Nutrition and Fertilizers, 2020, 26(12): 2177-2183. DOI: 10.11674/zwyf.20384

稻草和紫云英联合还田下施氮水平对水稻产量及土壤氮素形态的影响

基金项目: 国家绿肥产业技术体系(CARS-22);公益性行业(农业)科研专项经费项目(201503122)
详细信息
    作者简介:

    朱强E-mail:zhuqiang@mail.hzau.edu.cn

    通讯作者:

    耿明建E-mail:mjgeng@mail.hzau.edu.cn

Effects of different nitrogen inputs on rice yield and soil nitrogen forms under incorporation of rice straw and Chinese milk vetch

  • 摘要:
    目的

    紫云英和稻草联合还田时其有机成分的分解和释放具有互补性。研究紫云英和稻草联合还田条件下水稻的适宜施氮水平,为稻田绿肥和稻草联合还田后优化养分管理提供依据。

    方法

    两年定位试验位于江汉平原稻区,在稻草全量还田基础上,设置冬季种植并翻压紫云英和冬闲两种模式。水稻季氮肥处理设不施氮 (N0) 和常规施氮量 (N 165 kg/hm2) 的50% (N50)、100% (N100) 和150% (N150) 共4个水平,以不施氮、冬闲和稻草不还田作为空白对照,共9个处理。测定水稻籽粒产量、氮含量及累积量,分析耕层土壤无机氮及有机氮组分。

    结果

    在稻草和紫云英联合还田条件下,减少常规氮肥量的50% (SMN50) 获得的稻谷产量较稻草单独还田的SN50处理高21%~23%,与联合还田或稻草单独还田下的SMN100、SMN150、SN100、SN150处理之间没有显著差异。稻草和紫云英联合还田的SMN0、SMN50、SMN100处理的稻谷氮累积量均显著高于对应的稻草单独还田处理 (SN0、SN50、SN100),增幅分别为65%、27%和22%。水稻收获后各处理间土壤全氮、非酸解性氮含量差异不显著,酸解性氮含量有差异,在N150处理下,稻草单独还田处理 (SN150) 的土壤酸解性氮含量显著高于稻草和紫云英联合还田处理 (SMN150);在酸解性氮组分中,SN150处理的未知酸解态氮成分的含量显著高于稻草单独还田的其他处理及所有稻草和紫云英联合还田处理。

    结论

    减少常规施氮量的50%情况下,与稻草单独还田处理相比,稻草和紫云英联合还田可显著增加稻谷氮素累积量、提高水稻产量,而保持常规施氮量和提高施氮量不能增加水稻的氮素吸收和产量;紫云英与稻草联合还田可以改善土壤氮素的有效性,显著降低高施氮量下稻草单独还田带来的酸解性氮组分中未知态氮的残留量。

    Abstract:
    Objectives

    The decompostion and nutrient release of Chinese milk vetch (CMV) and rice straw are complementary when jointly incorporated into soil. Thus, the effect of nitrogen application rates on rice yield, nitrogen-use efficiency, and soil organic nitrogen under incorporation of CMV and rice straw was studied.

    Methods

    A two-factor complete split field trial was conducted for two years in Jianghan plain. The two factors were: 1) combined incorporation of CMV and rice straw (SM) or incorporation of rice straw alone (S); 2) N application rate [50% (N50), 100% (N100), and 150% (N150) of the conventional N input (165 kg/hm2), and no N input (N0)]. The grain yield and biomass were weighed, grain N concentration, plant N concentration, and inorganic and organic N concentrations in surface soil were analyzed

    Results

    The rice yield of SMN50 treatment was 21%‒23% higher than that of SN50 treatment, but similar to those of SMN100 and SMN150. The grain N uptake in SMN0, SMN50, and SMN100 treatments were significantly higher than those recorded in SN0, SN50, and SN100 treatments, with increase rate of 65%, 27%, and 22%, respectively. The soil total N and non-acid-hydrolysable N concentrations after rice harvest were similar for all treatments, but the acid-hydrolysable N contents varied significantly. Among the four forms of the acid-hydrolysable N, the unidentified N increased significantly in SN150 treatment than that in other treatments.

    Conclusions

    Compared with rice straw returning alone, the co-incorporation of rice straw and CMV increased rice yield and grain N uptake under 50% reduction of conventional N application rate, while conventional rate or 50% increase in N input did not. The co-incorporation of CMV and rice straw could improve the availability of soil N and significantly decrease the residual acid-hydrolysable unidentified N content under high N input.

  • 稻草还田可以有效增加土壤有机质含量,减少土壤养分流失,是当前稻草资源合理利用的主要途径[1-3],但稻草碳氮比和木质素含量高,在土壤中分解缓慢,供氮性能较差。稻草还田初期会促进土壤微生物对无机氮的固定,导致与作物争氮,并增加稻田甲烷的排放量[4-5]。紫云英通过生物固氮、轮作倒茬等功能在化肥农药减量施用方面发挥重要作用[6-7],其碳氮比值、木质素含量较低,供氮能力强,腐解速度和腐解率均较高。稻田中翻压紫云英与稻草还田技术联合应用,利用两种有机物料的成分互补特性,协调还田物质的碳氮比值,具有提高稻田培肥效率、增加土壤供肥保肥性的潜力。沈亚强等[8]的研究结果表明,紫云英与稻草配合还田,要比二者单独还田更能使水稻稳产增产,但翻压紫云英如何调控稻草还田模式下土壤的供氮能力仍待进一步探讨。本研究采用田间定位试验,研究紫云英种植利用配施不同数量氮肥对稻草还田下水稻产量、氮素吸收以及土壤氮素形态的影响,探讨其对氮肥低量和过量施用的调控效应,通过分析两者的配合效应,以期进一步完善以“碳氮互济”为核心的稻田绿肥/稻草联合还田措施的技术参数和理论体系,更好地服务于我国农业绿色发展。

    田间试验在湖北省荆州市荆州区太湖管理区新风大队罗台队进行 (N30°22′1″,E112°2′57″,海拔44.6 m),当地年平均气温16.3℃、降水量1200 mm,近年来的习惯种植模式为单季中稻-冬闲。供试土壤为长江冲积母质发育的水稻土,耕层 (0—20 cm) 土壤pH为7.6、有机质22 g/kg、全氮2.0 g/kg、速效磷11 mg/kg、速效钾156 mg/kg。

    定位试验于2015年9月开始,设置9个处理:1) 稻草不还田 + 冬闲 + 不施氮肥 (N0);2) 稻草还田 + 冬闲 + 不施氮肥 (SN0);3) 稻草还田 + 冬闲 + 50%常量氮肥 (SN50);4) 稻草还田 + 冬闲 + 常量氮肥 (SN100);5) 稻草还田 + 冬闲 + 150%常量氮肥 (SN150);6) 稻草还田 + 紫云英 + 不施氮肥 (SMN0);7) 稻草还田 + 紫云英 + 50%常量氮肥 (SMN50);8) 稻草还田 + 紫云英 + 常量氮肥 (SMN100);9) 稻草还田 + 紫云英 + 150%常量氮肥 (SMN150)。常量氮肥即常规施氮肥量。

    每个处理重复3次,采用随机区组排列,小区面积为20 m2 (4 m × 5 m),各小区间用宽30 cm、高30 cm的田埂隔开。水稻收获后,先在紫云英种植处理撒播紫云英 (弋江种) 30 kg/hm2,然后,稻草还田的处理将脱粒后的稻草全部原地覆盖于地表。紫云英生长期间各处理均不施肥,在盛花期 (4月20日前后) 原地翻压还田。2017年各处理因翻压紫云英或稻草还田投入的养分量见表1。紫云英还田30天后,水稻插秧 (品种为黄华占),秧苗行距为25 cm、株距为20 cm。水稻季常规施肥量为N 165 kg/hm2、P2O5 60 kg/hm2、K2O 90 kg/hm2,供试化肥分别为尿素 (N 46%)、过磷酸钙 (P2O5 12%) 和氯化钾 (K2O 60%)。氮肥的70%作基肥,20%作分蘖肥,10%作粒肥,磷、钾肥全部作基肥施用。

    表  1  2017年各处理稻草和紫云英还田带入的养分量以及总养分投入量 (kg/hm2)
    Table  1.  Nutrients from the incorporation of rice straw and Chinese milk vetch (CMV) and the total nutrient input in each treatment in 2017
    处理
    Treatment
    化肥 Chemical fertilizer稻草 Rice straw紫云英 CMV总投入量 Total input
    NP2O5K2ONP2O5K2ONNP2O5K2O
    N060.090.060.090.0
    SN060.090.031.07.2137.531.067.2227.5
    SN5082.560.090.041.09.5181.8123.569.5271.8
    SN100165.060.090.048.211.1213.5213.271.1303.5
    SN150247.560.090.044.610.3197.7292.170.3287.7
    SMN060.090.039.09.0173.092.3131.369.0263.0
    SMN5082.560.090.050.411.6223.191.5224.471.6313.1
    SMN100165.060.090.052.212.0231.2107.6324.872.0321.2
    SMN150247.560.090.049.211.4218.097.3394.071.4308.0
    注(Note):处理代码中, 大写字母 S 表示稻草单独还田, SM 表示稻草和紫云英联合还田 In the treatment codes, the capital letter S represents straw returning alone, and SM indicates combining incorporation of straw and Chinese milk vetch; 由于紫云英季未施肥, 翻压紫云英带入的养分仅为根瘤固氮量, 固氮率按 66% 计算[9], 其他养分投入看作土壤内部的养分循环 Without any fertilizer application in growing CMV, the nutrient input by the incorporation of CMV was only the biological N fixation with fixation rate of 66%. Other nutrients added by CMV were considered as the nutrient inter-cycle in the soil.
    下载: 导出CSV
    | 显示表格

    水稻收获时,各小区水稻全部收割,风干后测定稻谷、稻草重量,并在每小区取6穴稻谷、稻草样品用于测定氮磷钾养分含量。2017年水稻收获后采集耕层 (0—20 cm) 土壤样品,每小区取5个样点混匀,其中一部分鲜土 (保存在4℃冰箱中) 用于测定土壤硝态氮、铵态氮含量,剩余土壤风干研磨后过150 μm筛,用于测定土壤全氮和有机态氮组分。

    植物样品经H2SO4–H2O2消煮后,用半微量开氏法测定氮含量[10]。土壤硝态氮、铵态氮经2 mol/L KCl浸提 (液土比5∶1),分别采用酚二磺酸比色法、靛酚兰比色法测定[11]。土壤全氮采用凯氏定氮法测定。土壤有机氮组分按照Bremner[12]酸解法分级,称取10.0 g过150 μm筛风干土样与20 mL 6 mol/L HCl混匀,进行回流酸解12 h后,分别采用水蒸汽蒸馏—凯氏定氮法测定酸解性全氮;采用MgO–蒸汽蒸馏法测定酸解铵态氮;采用柠檬酸-茚三酮氧化、磷酸盐–硼酸盐缓冲溶液水蒸汽蒸馏法测定氨基酸态氮;采用磷酸盐–硼酸盐缓冲溶液 (pH 11.2) 水蒸汽蒸馏法测定铵及氨基糖氮总含量,采用差减法计算氨基糖氮、未知酸解态氮和非酸解性全氮[11]

    稻谷或稻草氮累积量 (kg/hm2) = 干物质量 (kg/hm2) × 氮含量 (%)。

    氮肥当季回收率 (%) = (施氮肥处理的氮累积总量 – 相同还田模式下不施氮肥处理的氮累积总量) / 施氮量 × 100。

    总氮回收率 (%) = [添加氮素处理的氮累积总量 – 未添加氮素处理 (N0) 的氮累积总量] / 总氮投入量 × 100。

    试验数据采用 SAS 9.4软件进行方差分析,并经Duncan多重比较检验0.05水平上的差异显著性。

    SN0和N0处理的稻谷产量在两年内均没有显著差异 (图1)。SMN0处理的稻谷产量在2016年显著高于N0处理,但与SN0处理之间差异不显著,而在2017年,其产量显著高于SN0和N0处理。SMN50处理的稻谷产量较SN50处理高21%~23%,在2017年达到显著水平,而在两年内,SMN50处理与N100、N150施氮量下的联合还田或稻草单独还田处理之间差异均不显著。

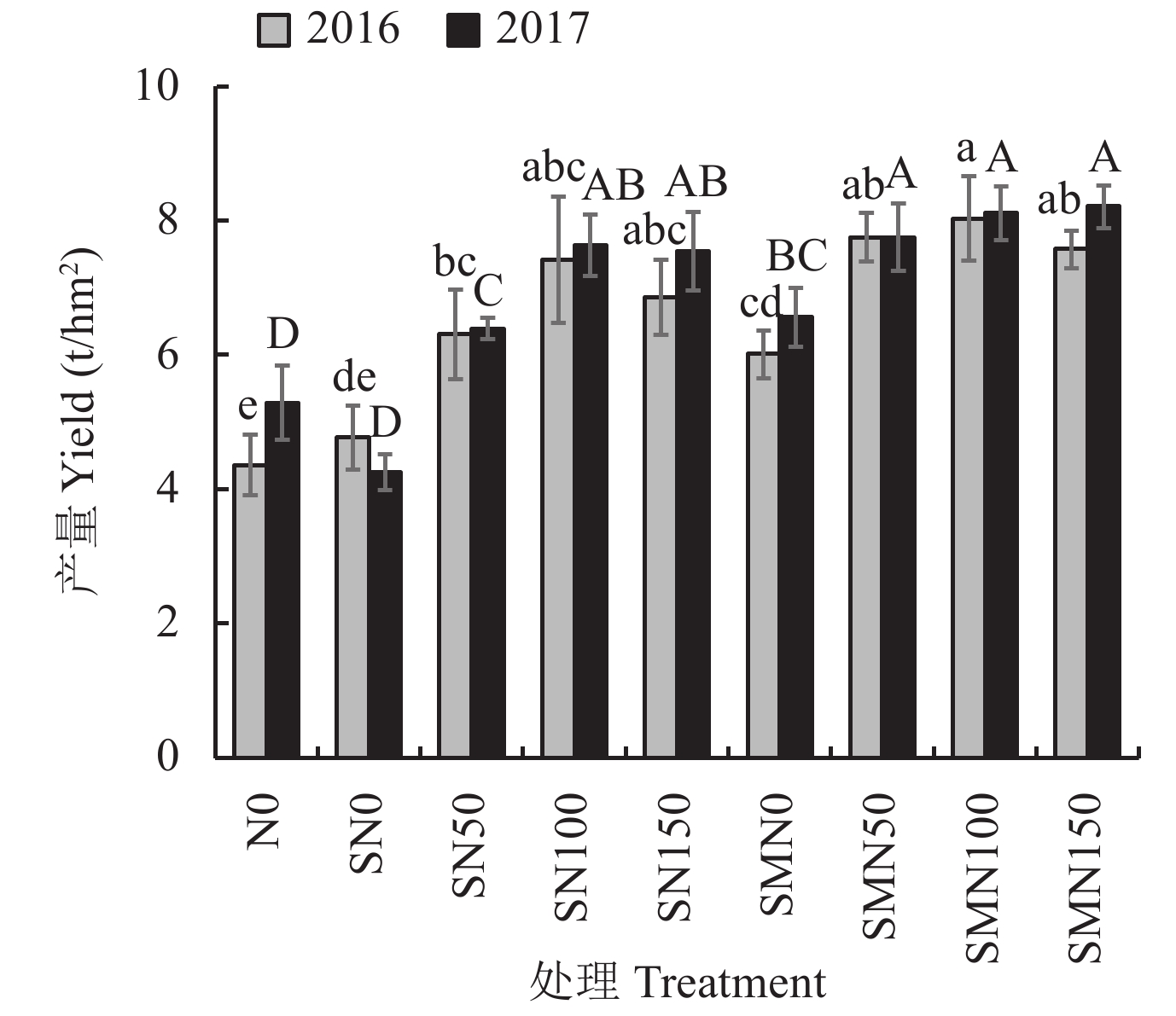

    图  1  不同施氮水平下稻草及紫云英还田对稻谷产量的影响
    [注(Note):处理代码中,大写字母S表示稻草单独还田,SM表示稻草和紫云英联合还田In the treatment codes,the capital letter S represents straw returning alone,and SM indicates combining incorporation of straw and Chinese milk vetch;柱上不同小写和大写字母分别表示2016和2017年不同处理间的稻谷产量在5%水平上差异显著Different lower case and upper case letters above the bars indicate significant difference among treatments at the 5% level in 2016 and 2017, respectively.]
    Figure  1.  Effects of combining incorporation of rice straw and Chinese milk vetch on rice grain yield under different nitrogen application rates in 2016 and 2017

    相同的施氮水平下,稻草和紫云英联合还田与稻草单独还田处理相比,稻谷的氮含量没有显著差异,除N100处理外,稻草的氮含量也没有显著差异 (表2)。施氮量为N0、N50、N100时,稻草与紫云英联合还田处理的稻谷氮累积量均显著高于稻草单独还田处理,增幅分别为65%、27%和22%。施氮量为N100时,稻草和紫云英联合还田处理的稻谷氮累积量与SN150和SMN150处理之间差异不显著。不施氮肥条件下,无论稻草和紫云英联合还田还是稻草单独还田处理,均未对稻草氮累积量产生显著影响。施氮量为N50和N100时,稻草与紫云英联合还田与单独还田处理下的稻草氮累积量仍没有显著差异,但当施氮量为N150时,稻草与紫云英联合还田处理的稻草氮累积量显著高于稻草单独还田处理。

    N50施肥水平下,稻草单独还田处理的氮肥当季回收率显著高于稻草和紫云英联合还田处理 (表2)。SN100、SN150、SMN100、SMN150处理之间的氮肥回收率没有显著差异,平均回收率为35%。由于SN0处理的水稻氮素累积总量低于N0处理,因此SN0处理的总氮回收率为负值(数据未列出),而添加紫云英的SMN0处理的总氮回收率为17.9%。SN50处理的总氮回收率显著高于SMN50处理,而处理SN100、SN150、SMN100、SMN150之间的总氮回收率依然没有显著差异,平均回收率为26%。

    表  2  不同施氮水平下稻草及紫云英还田对水稻氮含量、累积量及氮素回收率的影响
    Table  2.  Effects of combining incorporation of rice straw and Chinese milk vetch on rice nitrogen concentration, accumulation and recovery efficiency under different nitrogen application rates
    处理
    Treatment
    稻谷 Rice grain稻草 Rice straw氮肥回收率 (%)
    N recovery
    efficiency
    总氮回收率 (%)
    Total N recovery
    efficiency
    氮含量 (%)
    N concentration
    氮累积量 (kg/hm2)
    N accumulation
    氮含量 (%)
    N concentration
    氮累积量 (kg/hm2)
    N accumulation
    N00.80 ± 0.04 e42.1 ± 3.8 e0.47 ± 0.03 d27.8 ± 1.6 d
    SN00.85 ± 0.04 de36.2 ± 2.0 e0.57 ± 0.04 bcd28.0 ± 2.1 d
    SN500.98 ± 0.03 bcd62.6 ± 3.5 d0.67 ± 0.05 abc48.9 ± 10.0 bcd57.3 ± 10.8 a33.6 ± 5.9 a
    SN1000.97 ± 0.04 bcd73.8 ± 1.6 cd0.55 ± 0.06 cd47.9 ± 10.8 bcd34.9 ± 5.7 b24.3 ± 3.3 bc
    SN1501.26 ± 0.04 a95.1 ± 6.6 a0.70 ± 0.06 abc53.7 ± 3.4 bc34.2 ± 1.1 b27.0 ± 1.2 ab
    SMN00.91 ± 0.03 cde59.7 ± 4.4 d0.55 ± 0.02 cd33.8 ± 4.0 cd17.9 ± 1.8 c
    SMN501.03 ± 0.04 bc79.3 ± 3.6 bc0.62 ± 0.03 abcd46.2 ± 3.9 bcd38.8 ± 0.6 b24.7 ± 1.0 bc
    SMN1001.11 ± 0.09 b90.3 ± 10.7 ab0.73 ± 0.1 ab61.4 ± 9.8 ab35.3 ± 8.3 b25.2 ± 4.8 bc
    SMN1501.28 ± 0.06 a104.3 ± 0.7 a0.76 ± 0.06 a78.4 ± 3.7 a36.0 ± 1.9 b28.6 ± 0.8 ab
    注(Note):处理代码中, 大写字母S表示稻草单独还田, SM表示稻草和紫云英联合还田 In the treatment codes, the capital letter S represents straw returning alone, and SM indicates combining incorporation of straw and Chinese milk vetch; 同列数据后不同小写字母表示不同处理间在 5% 水平上差异显著 Different lower case letters in a column indicate significant difference among treatments at the 5% level.
    下载: 导出CSV
    | 显示表格

    施氮量为N100处理时,稻草单独还田处理的土壤硝态氮含量显著高于稻草和紫云英联合还田处理,而在其他施氮水平下,两种还田模式之间的差异不显著 (图2)。SMN0处理的铵态氮含量显著高于其他处理,从硝态氮和铵态氮两者之和来看,SMN0处理显著高于SN0处理,在其他施氮水平下两种还田模式之间的差异不显著。

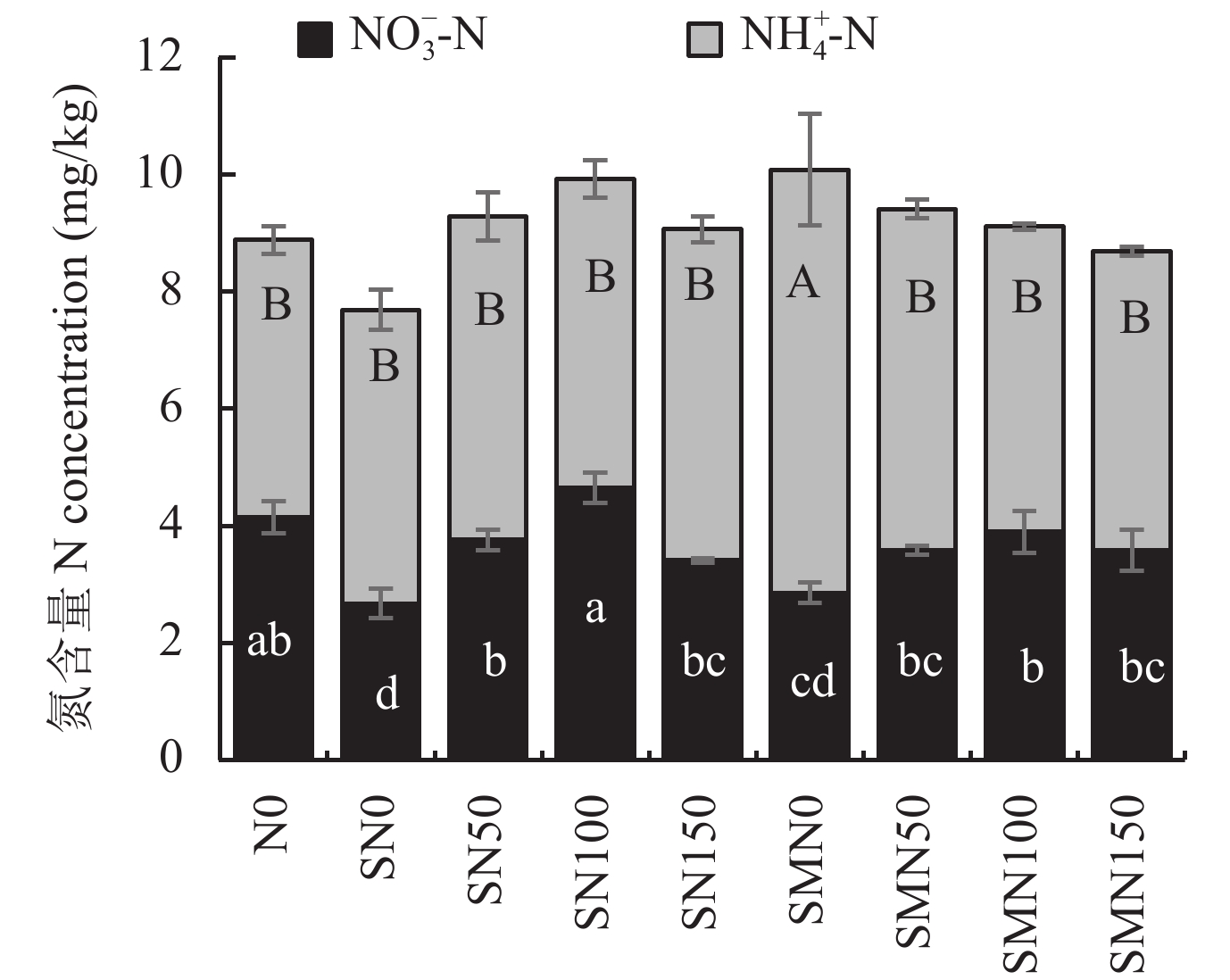

    图  2  不同施氮水平下稻草及紫云英还田对土壤硝态氮和铵态氮含量的影响
    [注(Note):处理代码中,大写字母S表示稻草单独还田,SM表示稻草和紫云英联合还田In the treatment codes, the capital letter S represents straw returning alone, and SM indicates combining incorporation of straw and Chinese milk vetch;柱形图内不同小写和大写字母分别表示不同处理间硝态氮和铵态氮含量在5%水平上差异显著Different lower case and upper case letters inside the bars indicate significant difference among treatments at the 5% level for the concentrations of nitrate and ammonium N, respectively.]
    Figure  2.  Soil NO3-N and NH4+-N concentrations affected by combining incorporation of rice straw and Chinese milk vetch under different nitrogen application rates

    水稻收获后各处理土壤全氮、非酸解性氮含量之间的差异未达到显著水平 (表3)。施氮量为N0、N50、N100时,两种还田模式下的酸解性氮含量差异不显著,但当施氮量为N150时,稻草单独还田处理的酸解性氮含量显著高于稻草和紫云英联合还田处理。稻草和紫云英联合还田模式下,不同施氮量处理之间的酸解性氮含量差异不显著。

    表  3  稻草及紫云英还田配施不同水平氮肥下土壤全氮、酸解性氮和非酸解性氮的含量 (mg/kg)
    Table  3.  Concentrations of soil total N, acid-hydrolysable N (AHN) and non-acid-hydrolysable N (NAHN) applied with different nitrogen rates under combining incorporation of rice straw and Chinese milk vetch
    处理 Treatment全氮 Total N酸解性氮 AHN非酸解性氮 NAHN
    N01972 ± 236 a530 ± 44 bc1442 ± 214 a
    SN01568 ± 41 a464 ± 69 c1104 ± 80 a
    SN502101 ± 90 a566 ± 5 ab1535 ± 86 a
    SN1001890 ± 109 a530 ± 22 bc1360 ± 123 a
    SN1501965 ± 48 a629 ± 25 a1335 ± 50 a
    SMN01865 ± 259 a527 ± 21 bc1338 ± 259 a
    SMN502266 ± 228 a474 ± 6 bc1792 ± 225 a
    SMN1001962 ± 53 a516 ± 29 bc1445 ± 67 a
    SMN1502240 ± 123 a513 ± 21 bc1728 ± 142 a
    注(Note):处理代码中, 大写字母 S 表示稻草单独还田, SM 表示稻草和紫云英联合还田 In the treatment codes, the capital letter S represents straw returning alone, and SM indicates combining incorporation of straw and Chinese milk vetch; 同列数据后不同小写字母表示不同处理间在 5% 水平上差异显著 Values followed by different lower case letters in a column indicate significant difference among treatments at the 5% level.
    下载: 导出CSV
    | 显示表格

    土壤酸解氮组分中,酸解铵态氮和氨基酸氮的含量在各处理之间差异不显著 (表4)。当施氮量一致时,两种还田模式下的氨基糖氮含量未受显著影响。SN150处理的氨基糖氮含量显著低于N0、SN100和SN50处理,而稻草和紫云英联合还田模式下各处理之间的氨基糖氮含量差异不显著。此外,SN150处理的未知酸解态氮的含量显著高于其他处理。

    表  4  稻草及紫云英还田配施不同水平氮肥下土壤酸解氮组分的含量 (mg/kg)
    Table  4.  Concentrations of soil acid-hydrolysable nitrogen components applied with different nitrogen rates under combining incorporation of rice straw and Chinese milk vetch
    处理
    Treatment
    铵态氮
    Ammonium N
    氨基酸氮
    Amino acid N
    氨基糖氮
    Amino sugar N
    未知酸解态氮
    Acid-hydrolysable unidentified N
    N0205 ± 12 a85 ± 6 a186 ± 42 a54 ± 17 bc
    SN0254 ± 32 a82 ± 9 a112 ± 3 bc17 ± 3 d
    SN50291 ± 16 a72 ± 4 a173 ± 15 ab30 ± 10 bcd
    SN100251 ± 23 a87 ± 1 a181 ± 3 a10 ± 2 d
    SN150291 ± 44 a85 ± 9 a94 ± 2 c159 ± 18 a
    SMN0272 ± 11 a80 ± 4 a150 ± 5 abc25 ± 17 bcd
    SMN50237 ± 13 a62 ± 6 a159 ± 16 ab16 ± 5 d
    SMN100230 ± 11 a67 ± 3 a159 ± 25 ab60 ± 3 b
    SMN150258 ± 22 a77 ± 6 a153 ± 10 abc24 ± 7 cd
    注(Note):处理代码中, 大写字母 S 表示稻草单独还田, SM 表示稻草和紫云英联合还田 In the treatment codes, the capital letter S represents straw returning alone, and SM indicates combining incorporation of straw and Chinese milk vetch; 同列数据后不同小写字母表示不同处理间在 5% 水平上差异显著 Values followed by different lower case letters in a column indicate significant difference among treatments at the 5% level.
    下载: 导出CSV
    | 显示表格

    有机肥和无机肥配合施用可以提高农作物产量,增加土壤肥力[13-14]。研究表明,在南方稻田中种植紫云英可以替代部分化肥[15]。本试验中,在不添加外源氮肥的情况下,稻草和紫云英联合还田处理的稻谷产量在2017年显著高于稻草单独还田处理,而且水稻收获后,SMN0处理的土壤铵态氮含量显著高于SN0处理,证实了翻压紫云英可以为水稻生长提供部分氮养分。SMN0处理的铵态氮含量最高,一方面是由于紫云英提供的有机氮的矿化,另一方面该处理下水稻的氮累积量较低,残留了部分氮素。稻草和紫云英联合还田模式下,施氮量为常量的50%时稻谷产量即接近峰值,此时氮养分投入总量 (化肥 + 紫云英固氮 + 稻草) 为N 224 kg/hm2。由此看出虽然氮肥减量50%,但通过翻压紫云英,其有机体经矿化后补充土壤氮源,因此能维持较高的水稻产量,增产效果优于稻草单独还田处理。王秀斌等[16]的试验结果显示,双季稻高产田适宜施氮量为N 240 kg/hm2,之后稻谷产量不随施氮量的增加而有显著变化。本试验与此结论一致,SMN100以及SMN150处理与SMN50处理相比,并未因施氮量的增多而显著增加稻谷产量。

    席莹莹[17]的研究结果显示,翻压紫云英可以显著提高水稻地上部氮养分累积量。本试验结果也表明在施氮量 < 247.5 kg/hm2 (N150) 时,稻草和紫云英联合还田处理的稻谷氮养分累积量高于稻草单独还田处理。由于翻压紫云英提供了部分氮养分,导致SMN50处理的氮肥当季回收率以及总氮回收率低于仅有稻草还田的SN50处理。

    连泽晨[15]在紫云英和稻草还田试验中,发现两者联合还田比稻草单独还田对土壤肥力的提升效果更好。在本试验中,稻草和紫云英联合还田与稻草单独还田处理并未对水稻收获后的土壤全氮含量产生显著影响,说明两年的定位试验不足以影响土壤残余全氮含量。姜慧敏等[18]的试验结果显示,单施氮肥处理将会使土壤中酸解性氮含量有所降低。宗海英等[19]的研究发现紫云英和稻草等有机物料的添加不仅能使土壤中非酸解性氮含量升高,而且还能使酸解性氮的形态构成和含量发生明显的变化。本试验表明,SN150处理的酸解性氮含量显著高于SMN150处理,其中增加的主要组分为未知酸解态氮。土壤酸解性氮组分的变化与土壤微生物区系的变化息息相关[19],稻草和紫云英联合还田处理调控土壤的碳氮比,改变了土壤的微生物区系,从而使土壤氨基糖氮含量维持在较高水平,且不受外源氮肥的影响。紫云英是氮含量极其丰富的一种绿肥,其在盛花期翻压入田,一部分氮素被植物带走或通过其他途径损失后,仍剩余部分氮素,并对后季作物具有一定作用[20]。另外稻草与紫云英联合还田模式促进作物生长,并增加根系分泌物的分泌量和土壤中的残茬量,从而使得土壤微生物量和活性有所增加[21]

    江汉平原稻区两年定位试验显示,施氮量为常规用量的50%时,稻草与紫云英联合还田的稻谷产量较稻草单独还田增加21%~23%,随着氮肥用量增加至常量或150%常量时,稻草与紫云英联合还田处理的稻谷产量并没有再显著增加。施氮量为常量的0%、50%、100%时,稻草与紫云英联合还田处理的稻谷氮累积量较稻草单独还田处理显著提高,增幅达22%~65%。紫云英种植利用对稻草还田条件下水稻收获后土壤全氮、非酸解性氮总量无显著影响,保持土壤氨基糖氮含量相对稳定,并降低150%常量施氮水平下土壤未知酸解态氮含量。稻草还田后种植利用紫云英,可以调控土壤氮素供应能力,增加水稻对氮素的吸收,提高和稳定水稻产量,减少氮肥投入。
